Raypak E3T 5kw Electric Spa and Hot Tub Heaters
When electricity is the energy choice for pool heat pumps, Raypak is the quality choice: dependable, trouble-free, and performance-proven. Two compact models - 5.5kw and 11kw - electric pool heater built to last and keep your swimming pool heated by the company renowned for reliability. Lower your pool heating cost with a new heater.

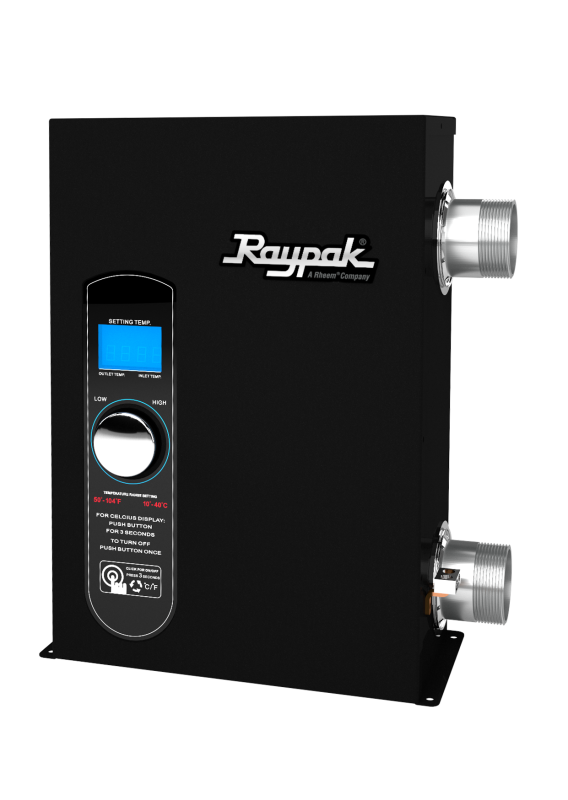

The Electric 3-Series Titanium heater is the latest technology in pool and spa heating. The E3T is built with titanium heating elements and 316L stainless steel to withstand extreme pool water conditions, including salt water chlorinated pools. The E3T heater operates by utilizing the latest solid-state design and flow sensor technology. It has easy to use digital controls with diagnostics. The compact size makes it is easy to install for new construction or replacement installations.E3T features large size, heavy duty titanium heating elements that lasts far longer than ordinary water heating elements.
E3T digital spa/hot tub pool heaters with electric power furnish sustained heat to provide the maximum benefits of hydrotherapy, including stress reduction, relaxation and arthritis/pain relief.
The E3T has a robust titanium heating element that not only prolongs the life of the heater, but allows it to work in extreme pool water environments, such as salt water chlorinated pools.
316L Stainless Steel
316L stainless steel is used in the construction of our heaters. This high grade, corrosion resistant steel is especially suited for salt water heating applications.
Flow Sensor Technology
E3T operates by utilizing the latest flow sensor technology instead of the traditional pressure switch activation. Our heater is programmed to have a minimum flow activation rate of 15 Gallons Per Minute, this helps protect the elements and prolong their lifespan.
Solid State Design
The E3T uses solid state controls to eliminate noisy and troublesome contactors providing quiet, reliable operation. The advanced design allows the heater to modulate power, only using the energy necessary to maintain desired temperature.
Ready To Install
E3T pool and spa heaters are compact, come standard with union connections, and are easy to install. They are the perfect solution for a new pool or spa, as well as to replace any existing pool or spa heater. Available in 5.5, 11 kW.
Because all waterways are corrosion-free copper and bronze - not aluminum. And, E3T features large size, heavy duty Incoloy heating elements that lasts far longer than ordinary water heating elements. Trouble Free Because E3T has extra quality and safety built-in - a pressure switch to prevent operation without water flow, a high limit temperature control to prevent overheating and a dependable quality thermostat.
Easy to Install
With a compact design that fits into small spaces Standard size, full flow 1-1/2" inlet and outlet connections are conveniently located. External current leak protectors are not required.
Because E3T has extra quality and safety built-in - a pressure switch to prevent operation without water flow, a high limit temperature control to prevent overheating and a dependable quality thermostat.

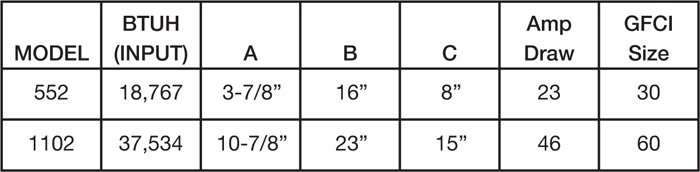

Specifications & Dimensions

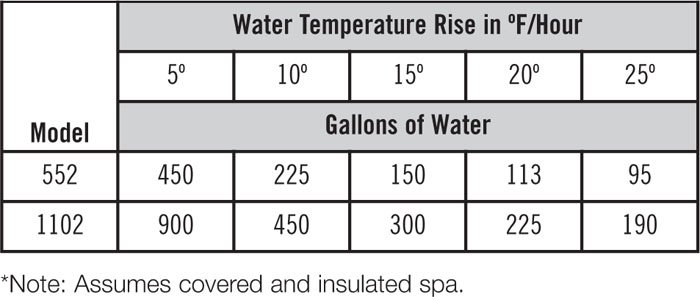

The following table shows the heating capability for each model in temperature rise per hour with a given amount of water. For example, the 11kw unit will raise the temperature of 450 gallons of water 10 degrees Fahrenheit in one hour. To determine the amount of gallons of your spa, multiply the surface area x average depth x 7.5.
AHRI Standard Rating Conditions. Air Conditioning, Heating and Refrigeration Institute.
80°F/ 80°F/ 80%
Used as the basis of comparison for performance characteristics.
This institute operates to standardize the testing and performance data for all heat pumps. Seer Ratings and Performance data must be factual, accurate and verified.
- Spa/Hot Tub
